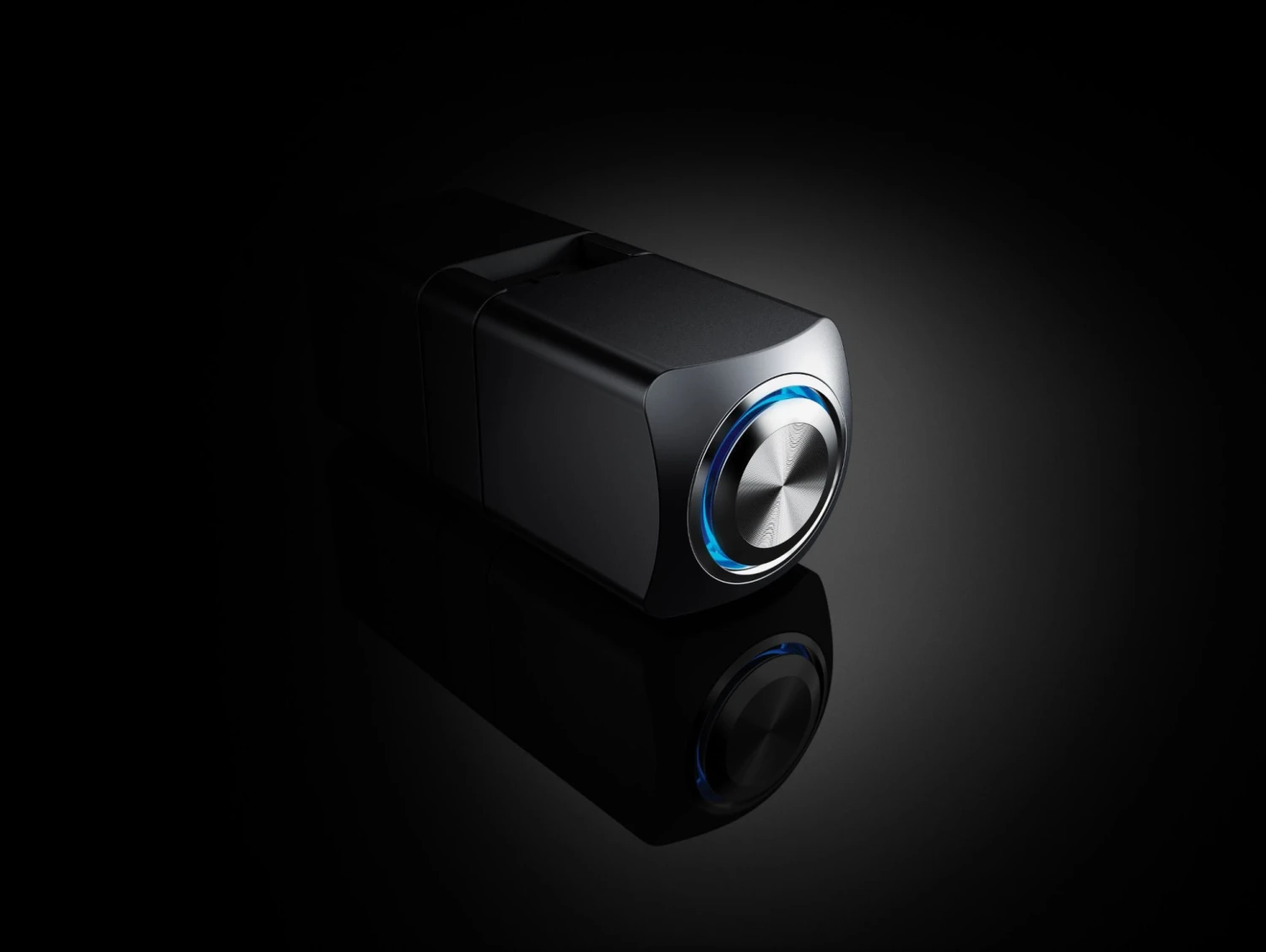

VXi-BTC

JLid™ Bluetooth® Communicator for VXi Amplifiers

The VXi-BTC is a wireless communication accessory designed to add handheld control functionality to VXi amplifiers. Equipped with Bluetooth® LE (Low Energy), the VXi-BTC permits wireless (up to 33 ft/10 m away) configuration of VXi amplifiers using your compatible mobile device running TüN™ mobile applications.

Note: The VXi-BTC provides a control interface only and does not support audio streaming.

Mobile applications of TüN™ software include:

TüN™ Express – For iPhone, iPad and Android phones and tablets. Delivers streamlined options, for fast and simple amplifier setup.
TüN™ Mobile – For iPad and Android tablets. Enjoy the full-featured TüN™ software experience on your tablet, with the freedom of a wireless connection. (TüN™ Express and TüN™ Mobile is available on the App Store and on Google Play.)

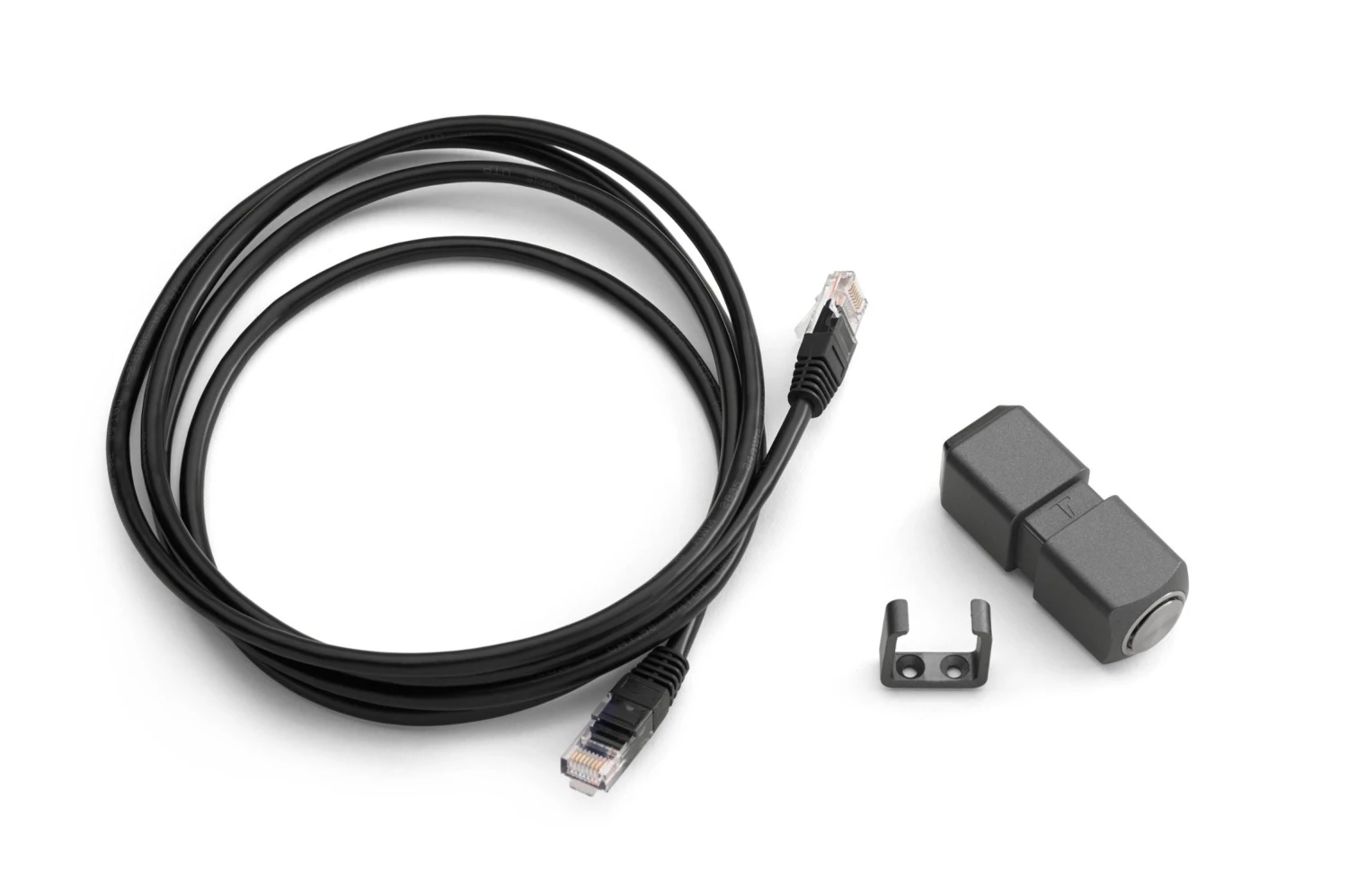

What is Included:

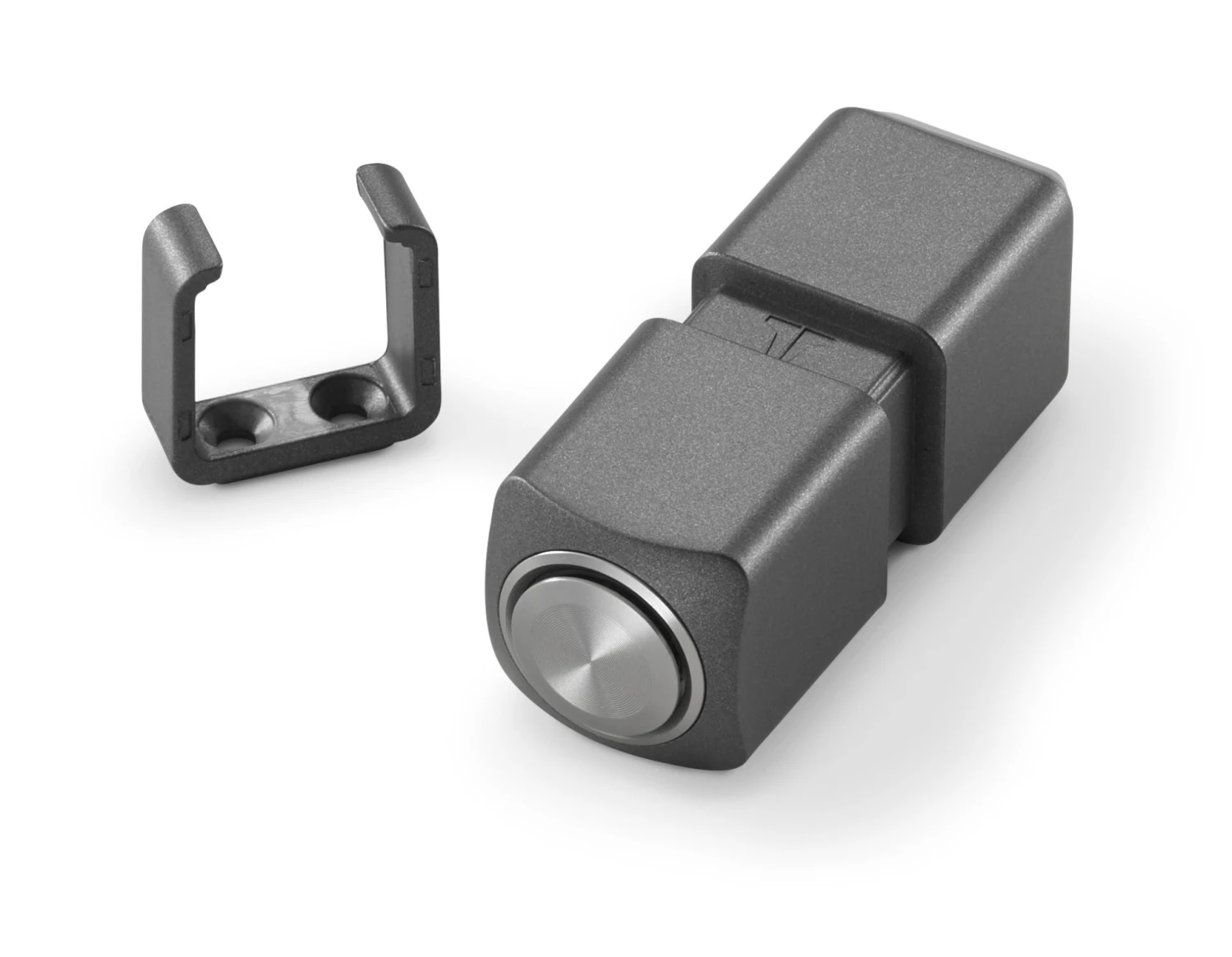

• (1) VXi-BTC Bluetooth® Communicator
• (1) CAT5e Network Cable (6.5 ft./2 m)
• (1) Mounting Clip
• (2) Mounting Screws

Height (H)	0.99 in / 25 mm
Width (W)	0.96 in / 24 mm
Depth (D)	2.54 in / 65 mm

JLid™

Summary:
JLid™ is JL Audio’s protocol for digital controllers and for communication of settings between devices (not for audio signals).

Detailed Information:
JLid™ offers two-way communication for a range of accessories, including the following:

    Wired System Controllers: DRC-100, DRC-200, DRC-205
    Bluetooth® Communicator: VXi-BTC
    Networking Accessory: VXi-HUB

JL Audio FiX® and TwK® processors each feature one “JLid™ Port”, designed for connection of a wired controller.

JL Audio VXi amplifiers offer powerful networking capabilities via JLid™, to deliver single-point control of multiple amplifiers in a system. This allows the user to adjust levels (Volume, Fader, Balance, Zone Level) and to select from multiple DSP presets, across an entire group of networked amplifiers. JL Audio VXi amplifiers each feature separate “JLid™ Control” and “JLid™ Comm” ports. Please refer to the VXi product manual and our Help Center for details.

JLid™ connections are made via standard CAT-5e cables.

Download  VXi-BTC Product Manual



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
